AXYZ Series CNC Routers are available with an extensive choice of process areas, a variety of head and tooling configurations, and the most diverse combination of productivity options in the industry. They are suitable for use in many different application areas and for processing all types of woods, plastics and non-ferrous metals.
Machines
Back to List
Customised Configuration
Router Spindles
Choice of Knife Tools
Solid Machine Base
Gantry Height
Drive Systems
Zoned Vacuum Deck
Zone Controls
SmartConsole
Tool Length Sensor
Process Areas
Head Configuration
Automatic Toolchange Router Spindle Options Knife Options Vacuum Deck
Alignment
Dust Collection
Camera Registration
Spray Mister
AXYZ Series
Customised ConfigurationA wide range of tooling and head configurations are available to meet your unique application requirements
Router SpindlesChoose from manual, quick-release, high-power and high-speed spindles for optimum processing of rigid sheet materials.
Choice of Knife ToolsVarious knife tools are available to process a range of flexible and semi-rigid materials.
Solid Machine BaseA rigid, welded steel frame, fitted with an aluminium deck, creates a strong structure to support the most demanding processes.
Gantry HeightSpecify the most appropriate gantry clearance to accommodate your products and machining requirements.
Drive SystemsThe standard helical rack and pinion provides superior high speed performance delivering greater accuracy, smoother cutting and quieter running. For high-volume applications where cycle times need to be kept to a minimum, the powerful servo drives can increase productivity.
All Z axes feature a precision ballscrew drive as standard.
Zoned Vacuum DeckAll AXYZ Series machines have machined aluminium vacuum decks to maximise material hold down for quality cutting and reduced waste
Zone ControlsVacuum zones can be switched with manual valves or automatically by the machine controller.
SmartConsoleFull machine control at your fingertips for fast and easy machine setup in an intuitive and compact package.
Tool Length SensorAn automatic tool length sensor which ensures accurate and consistent cut depths is fitted as standard on all AXYZ machines.
| Standard Process Areas | |
| AXYZ 4000 | 1524mm Width. Lengths from 1220mm to 15m |
| AXYZ 5000 | 1842mm Width. Lengths from 3048mm to 15m |

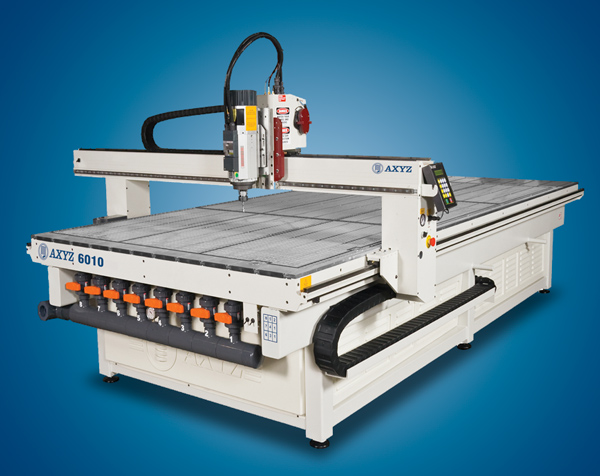

| AXYZ 6000 | 2159mm Width Lengths. from 3048mm to 15m |

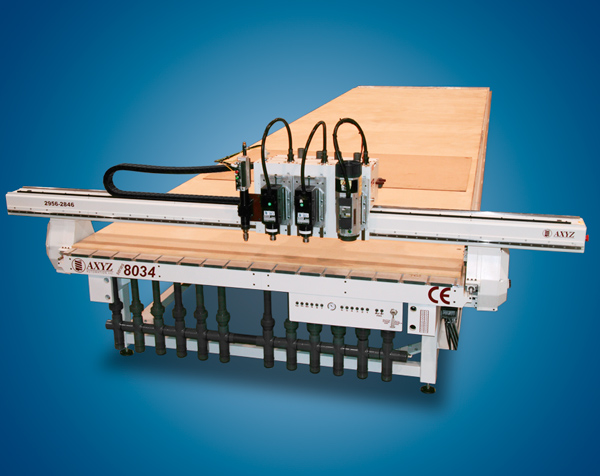

| AXYZ 8000 | 2635mm Width. Lengths from 3048mm to 15m |
| AXYZ 10000 | 3270mm Width. Lengths from 3048mm to 15m |
| Optional Additional Length | 610mm Increments |
| Standard Gantry Clearance | 150mm |
| Optional Gantry Clearance | 200mm, 250mm, 300mm, 330mm, 380mm, 455mm |
| Drive System | X, Y – Rack and Pinion, Z – Ballscrew |
| Typical Positioning Speed | 25m/min - 50m/min |
| Control System | AXYZ A2MC Controller |
| Power Requirements | 208-230V 3 Phase / 440-460V 3 Phase |
Process AreasChoose your preferred process width and then specify a length from 1220mm to 15m or even more.
Head ConfigurationAXYZ Series machines can have one or two gantries fitted with single or twin heads and each head can accommodate multiple tools. Tools may be router spindles, knife tools, drills and more.
Automatic ToolchangeFor maximum productivity Series machines can be fitted with an automatic toolchange carousel containing 7, 21 or even 33 tool stations. The carousel is mounted on the gantry to minimise the toolchange time
Router Spindle OptionsSpindles are available from quality manufacturers such as HSD and Elte with power outputs from 3Hp to more than 10Hp, a choice of manual, semi or fully automatic toolchange and high speed options for specialist applications.
Knife OptionsFitting one or more knife tools can broaden the range of materials that can be processed. Choose from a standard tangential knife or high performance tangential oscillating knife. A wide range of blades are available for cutting flexible and semi-rigid materials.
Vacuum DeckDepending on its process area, the machine deck will include multiple vacuum zones. Options are available for manual or automatic switching of the zones. In automatic mode, known as 'Live Deck' the machine controller opens zones according to the position of the cutting head to maximise hold down exactly where it is needed.
AlignmentPneumatically operated steel pop-up pins are useful for ensuring repeatable material placement. The number and positioning of the pins is fully customisable.
Dust CollectionWhen using routing spindles the removal of dust and debris is vital for good quality edge finish and for health and safety. The AXYZ High Capacity and Universal 5Y Pressure Feet are designed to assist material hold down and also maximise extraction under all types of cutting conditions.
Camera RegistrationThe AXYZ Vision System (AVS) uses registration marks on printed materials to adjust the cutting program for perfect alignment. This essential option for cut-to-print applications works with all cutting tools and materials.
Spray MisterCertain materials, in particular aluminium and other non-ferrous metals, often cut better with a small amount of lubricant or coolant. The Unist Mister option will automatically apply a pre-set amount to the tool during cutting and is compatible with all pressure feet options.
