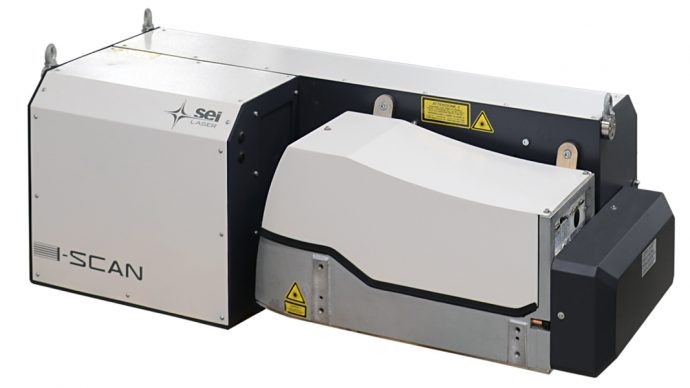

I-Scan, one of the models developed by SE I Laser in the OEM Line, is a cutting/marking system based on galvo technology of new generation, with the largest field of work and smaller spot-size, it finds application in direct converting or embellishment processes as well as die-cutting in markets as: textile, footwear, leather, paper, electronic, automotive (technical textiles), and lighting (LGP – Backlight for LED ), on large format up to 2000x2000 mm.
The so called “digital converting” market is experiencing recently a significant expansion thanks to the growing needs of production flexibility, JIT, fashion or unique features, required by the industry. SE I Laser answer to this request is I-Scan.
I-Scan is a laser marking/cutting system with CO2 “sealed off” technology operating in 10600nm developed to be easily integrated into production lines of third parties: the OEM. The solution is characterized, in addition to the use of laser sources with “sealed-off” technology, (zero maintenance), especially for the particular optical architecture.
Designed for driving the laser by beam steering galvanometer unit with three-axis interpolated and “full digital” features, it allows the highest quality of laser beam in terms of focusing on very large areas with ability to cut, mark and engrave as well, thin materials compatible with the CO2 laser radiation with the highest product quality.
I-Scan can be controlled from any PC through the user interface ICARO (Windows) or “stand alone” mode (without PC). The possibility of marking “on-the-fly” when installed on a moving line, the presence of a complete set of digital I/O, serial ports RS 232/485 and network connection LA N10/100, make I-Scan the ideal marking/cutting tool for integration into production lines and automation of any kind.
