Vision 2550 CNC Router/Engraver

The 2550 CNC Router/ Engraver is Vision's heavy-duty routing system. It can produce accurate, repeatable, cost-effective work in considerably less time than it takes to do the same work by hand. Featuring our state-of-the-art Vision Series 4 Controller and our graphically advanced Vision software, this machine is perfect for a wide variety of applications including milling, drilling, contouring, and routing.

Applications:ADA-compliant signage, Routing out wood signs, Cutout letters, Control panels, Cutting out sheets of material up to 2' x 4', 2 1/2D and 3D signs in sign foam, wood and more!



Download brochure

Our 2550 Router is made in the USA, built to be rugged, and backed by a superior customer support team.



• Aluminum T-slot table to accommodate various work-holding fixtures

• Red Laser Pointer for easy job set-up

• Includes Series 4 Controller w/ Hand-held pendant

• Optional Raster™ Braille Inserter for automatic Braille bead insertion

• NEW Optional Oscillating Knife for cutting semi rigid materials

• Available in a Vacuum Table model also includes High Quality
  Becker Vacuum Pump

• A limited 2-year warranty

Software Vision Express standard (Expert or Pro optional)
Maximum work area 25" x 50"
Maximum size part 30.5" (L) x Any Width x 7" (H)
Z-Axis Stroke 7" (Standard) or 10" (Optional)
Spindle Type Engraving Head standard. 3 HP Router Motor optional
Resolution / Speed 0.0002" - 10"/sec
Table Type Aluminum T-slot
Interface Ethernet
Controller Series 4 High-speed Controller
Warranty 2-Year Limited
Power Requirements 110/220V 15 Amp
Physical Dimensions 40"(W) x 66"(D) x 32"(H)
Series 4 Controller Dimensions 13.5"(W) x 16"(D) x 4.5"(H)
Shipping Dimensions  47"(W) x 80"(D) x 38"(H) - 737 lbs
Additional Options Automatic Braille Inserter, DACS (Digitally
Aligned Cutting System), 3 HP High
Frequency Router Motor, 50,000 RPM
Spindle, Vacuum Table, *3D Engraving Software, Oscillating Knife
ENGRAVING HEAD ENGRAVING HEAD
Choice of 1/4" of 11/64" top loading or optional collet spindle
DACS Camera DACS (Digitally Aligned Cutting System)
DACS, an alignment tool which provides perfect print-to-cut registration for our routing machines. This easy-to-use system requires minimal training and setup time, and is the most cost-effective, accurate solution for improving digital finishing.
Vision's Oscillating Knife

NEW Oscillating Knife
Work with a variety of materials and applications such as Graphic Foam Boards, Closed Cell Foam, Plastic-Covered Foam, Corrugated Cardboard and Plastic, Gasket Materials, Rubber, Cork, Carpet, Felt and other Single-ply Cloth or fabric, Vinyl, Leather, and more.



Extended Service Agreement for Vision Engraveing Machines & CNC Router VISION EXTENDED WARRANTY PLANS
Protect your investment with an extended service plan before your warranty expires! Extended Service Plans cover the cost of service parts, labor, and annual preventive maintenance completed at the factory. For more information or to purchase a service plan, please call our technical support department at 0359 2 971 45 00; 0359 2 971 44 99
BRAILLE INSERTION TOOL

AUTOMATIC Raster™ BRAILLE INSERTION TOOL
The Raster™ Pen Braille insertion device is an option for our engraving and routing systems. Vision-Pro software includes Braille fonts and is fully compatible with the Raster™ Method. Vision machinery allows precise placement of the Rasters™ (Braille beads), which are essential for shops producing ADA-compliant signage. The Raster™ Method of Braille insertion and Raster™ Pen are licensed, patented products owned by Accent Signage Systems, Inc. Minneapolis, MN.

3HP HIGH FREQUENCY SPINDLE

3 HP HIGH FREQUENCY SPINDLE
1/4” collet and high frequency inverter drive included. Variable speed from 3,000-18,000RPM. Low noise relative to other router heads.
(220V Required)

Collets
Size
1/8"
3/16" (4-5mm)
1/4" (6-7mm)
5/16" (8-9mm)
11/32"
3/8"
½"
ROUTER DUAL CARRIAGE

ROUTER DUAL CARRIAGE
Must be factory installed, and cannot be removed for single head engraving. Can hold router head or engraving head.
(Engraving head or router head not included)



Extended Service Agreement for Vision Engraveing Machines & CNC Router

NSK HIGH-FREQUENCY 50,000 RPM ENGRAVING SPINDLE
This high-frequency spindle is perfect for deep engraving into metals! The high RPM allows cutters to stay sharp much longer for increased production, and allows for much faster speed in engraving. Includes control box; no nose cone. Available as an option for our 16 Series and 24 Series Engravers, as well as our 25 Series Routers (with engraving head option).

UNIST Misting Systems UNIST Misting System
The Unist Micro-Dispensing Coolant System with solenoid, significantly reduce the cost and volume of cutting fluid used in metal cutting, forming, and stamping operations. Applying a vegetable-based, biodegradable lubricant in controlled amounts will reduce wear and tear of cutting tools during machining operations.
Multi Mat Holder For Engraving Machines & CNC Router MULTI MAT
Multi Mat eliminates the need for double stick tape, clamps, vacuum tables, and most other hold down methods on many engravable items. Multi Mat will hold most types of engraving stock, including brass, aluminum, plastic, and acrylic. Just press it into place on any size engraving table and you’re ready to go, and because Multi Mat is produced with a special rubber coating on both sides, it cleans easily for extended use.

Wedge Clamp for Engraving Machine & CNC Router WEDGE CLAMP
Simply slide the clamp onto the T-slot table surface and position it over the edge of the engraving stock. The downward clamping force eliminates bowing and problems. This clamp can be used with material up to 1/4” thick. Fits all Vision T-slot tables.

Edge Clamp for Engraving Machines & CNC Routers EDGE CLAMP
This clamp is designed to secure engraving materials from the top surface and avoids bowing in most applications. This clamp will hold material thicknesses of .020, .032, .062, and .125 by rotating the clamp and tightening a thumbscrew. Fits all Vision T-slot tables.
Coner Clampe for Engraving Machines & CNC Routers CORNER CLAMP
This clamp is designed to hold down square or rectangular plates. By lining up the “V” cut-out of the clamp with the corner of the plate, the engraver is allowed maximum engraving space. It will accommodate material as thin as 1/32”. Fits all Vision T-slot tables.
Universal Clamping bars for Engraving Machines
Universal Clamping bars for Engraving Machines
UNIVERSAL CLAMPING BARS w/MEDALLION HOLDER
These clamping bars hold small flat items, including name badges with pin backs, securely. By rotating the clamping bars they will hold 1 to 3 round objects at a time. This allows you to engrave multiple notary seals, coasters, paperweights, and a variety of other circular items. With a place for the “eye” of medallions, this clamp adapts to any vise or table that has a T-slot system.

Pen & Medalion Jig For Engraving Machines PEN & MEDALLION FIXTURE
This is a double-sided fixture that when turned in one direction accommodates a pen and when turned in the other direction accommodates a medallion, seal, or other circular item. With a space for the “eye” of the medallion, this fixture is usable with the Versa Vise or Quick-Lock vise. Fits all Vision T-slot tables.

Push Down Clamps for Engraving Machine & CNC Router PUSH-DOWN CLAMP
This double-sided clamp secures items from the edge. It is ideal for items that are being cut, contoured, or engraved. Fits all Vision T-slot tables.

Universal Pin Jig for Engraving Machine UNIVERSAL PIN FIXTURES
Available for the Versa Vise, Quick-Lock Vise, Vision T-slot table, and Self-Centering Vise. These fixtures enable engraving on all unique-sized pens, lighters, knives, key-chains, and many other irregular-shaped items.
Multiple universal Pin Jig for Engraving Machines MULTIPLE UNIVERSAL PIN FIXTURE VISE
This combination of a Versa Vise and three universal pin fixtures enables quick and easy setup for engraving multiple items of various shapes. Fits all Vision T-slot tables.
Versa Vise for Engraving Machines

VERSA VISE II
The Versa Vise II can be used alone or in conjunction with other fixtures to hold a variety of shapes and sizes.

Option, Versa Vise for Phoenix 1212 table - includes the 4 stanchions.

Seal Engraving Jig for Engraving Machines SEAL FIXTURE
This fixture enables engraving on 1 5/8" & 2" diameter notary seals, medallions, coasters, paperweights, and other round objects. Can be used with the Quick-Lock or Versa Vise. Fits all Vision T-slot tables.
Quck Lock Vise for Engraving Machines & CNC Routersr QUICK-LOCK VISE
This vise is specifically designed for T-slot table users. Its “cam” type locking device allows for quick changing of parts. Supplied with a removable front clamping plate which allows for holding thicker items. Fits all Vision T-slot tables.

Rotary Attchment

ROTARY ATTACHMENT
Engrave cylindrical items up to 10" in diameter.



PEN ROTARY ATTACHMENT PEN ROTARY ATTACHMENT
Now you're not just limited to engraving lengthwise on your pens, cigar holders, miniature baseball bats or other cylindrical items with the PEN ROTARY ATTACHMENT, you can engrave around the entire circumference! Compatible with the Vision 1612, 1624, 2424, 2448, 2525 and 2550, it can hold items up to 1.25" in diameter and up to 7" in length.
 Vacume Removal System for Engraving Machines & CNC Routers VACUUM CHIP REMOVAL SYSTEM
Quiet vacuum pump for removing engraving chips. The unit has a large filtered canister with replaceable collection bag. Includes vacuum nose cone and kink resistant hose.

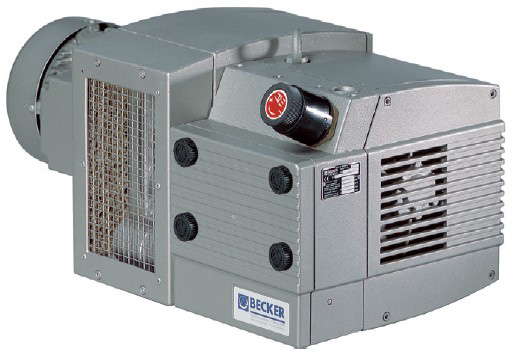

5 HP Becker Vacuum Pump 5 HP Becker Vacuum Pump
  • 100% Oil-less operation
  • Quiet
  • Cool operation
  • Long vane life
  • Inlet fillers included
  • Discharge silencers
  • Direct drive
  • Vacuum regulators included
  • Minimal maintenance
  • Continuous duty rated
  • 5 HP
  • 48 SCFM
